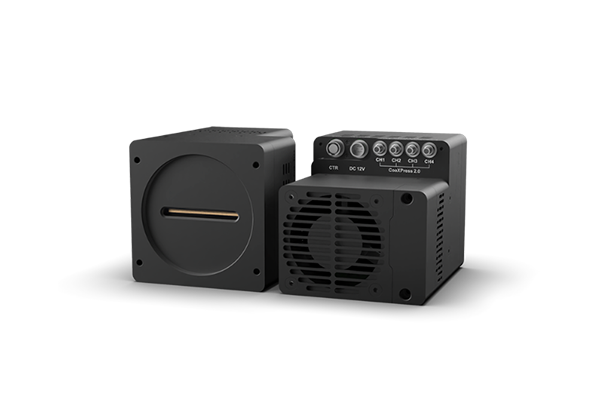

Dhyana 9KTDI
9K High Speed TDI camera for Low light inspection.
- 82%@550nm Peak QE
- 5μm x 5μm Pixel Size
- 9072 Resolution
- 510kHz@9K
- CoaXPress2.0
詢 價
產品介紹
The Dhyana 9KTDI has a high-speed line rate of 9K@510kHz as it adopts the BSI sCMOS technology, which means the data throughput is up to 4590 megapixels per second, almost 6x that of 8K CMOS -Line scan cameras and more than 50x that of TDI CCD cameras.
-
180nm-1100nm寬光譜
Dhyana 9KTDI 采用背照式 sCMOS 技術，已驗證的響應波段可覆蓋180 nm - 1100 nm區域。256級 TDI技術可以大幅提升紫外（193nm/266nm/355nm等波段）、可見光、近紅外等弱光成像信噪比，提高設備檢測精度。
-
510kHz @ 9K 高通量

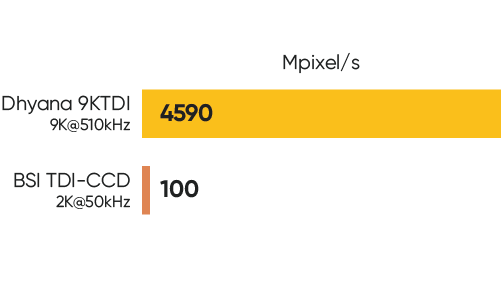

Dhyana 9KTDI 配備了最新的 CXP-12 高速接口。9K @ 510 kHz 線頻意味著每秒 4590 Mpixel 的數據吞吐量，幾乎是目前主流8K線陣相機的6倍，幾乎是背照式 CCD-TDI 相機的46倍。
技術參數 >
- Model: Dhyana 9KTDI
- Sensor Type: BSI sCMOS TDI
- Sensor Model: Gpixel GLT5009BSI
- Color/Mono: Mono
- Array Diagonal : 45.4mm
- Resolution: 9072
- Pixel Size: 5μm x 5μm
- Effective area: 45.36mm x 1.28mm
- QE: 82%@550nm；50%@350nm；38%@800nm
- Max. Line Rate: 300kHZ@12bit；345kHZ@10bit；510kHZ@8bit
- Operation Mode: TDI/Area
- TDI Stage: 4/8/16/32/64/128/192/256
- Scan Direction: Forward/Reverse/Trigger Control
- CTE: ≥0.99993
- Data Bit Depth: 12bit、10bit、 8bit
- Full-Well capacity: 15.5ke-@12bit；14ke-@10bit
- Dynamic Range: 68.7dB@12bit；63.6dB@10bit
- Readout noise: 7.2e-@12bit；11.4e-@10bit
- DSNU: 1.5e-@12bit；3.5e-@10bit
- PRNU: 0.3%
- Binning: 2x1; 4x1; 8x1
- Data Interface: CoaXPress 2.0
- Cooling Method: Air & Liquid cooling
- Cooling temperature: 40℃ below ambient
- Dark Current: 950e-/p/s@Chip temperature 10℃
- ROI: Support
- Trigger Mode: Trigger Input, Scan Direction Input
- Output Trigger Signals: Strobe out
- Trigger Interface: HR10A-7R-4S
- Timestamp Accuracy: 8 ns
- Gain: Analog Gain: x2 ~ x8; Digital Gain: x0.5 ~ x10
- Optical Interface: M72/User customization
- Power Supply: 12V/8A
- Power Consumption: <60W
- Dimensions: 86mm x 86mm x 109mm
- Weight: 1100g
- Software: Samplepro/Matlab
- SDK: GenICamTM
- Operating System: Windows/Linux
- Certification: CE/RoHS
- Operating Environment: Working Environment: Temperature 0~40°C/Humidity 0~85%
Storage Environment: Temperature 0~60°C/Humidity 0~90%
