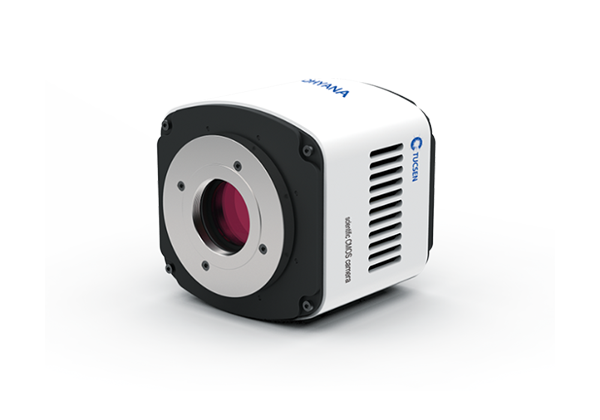

Dhyana 400DC
4MP color FSI sCMOS camera for low light imaging.
- Color sCMOS
- 6.5μm x 6.5μm Pixel Size
- 2048 x 2044 Resolution
- 22fps@8bit, 16fps@16bit
- USB3.0 Data Interface
詢 價
產品介紹
Tucsen Dhyana 400DC provides a color solution for low light fluorescence imaging, which can solve the contradiction that ordinary color cameras are not sensitive enough and ordinary mono cameras cannot provide color information, with 6.5 micron pixel size perfectly matched to high magnification microscopes.
-
高靈敏度彩色成像
采用高靈敏彩色sCMOS圖像芯片，兼具科研級的靈敏度和真實色彩還原能力，無論明場還是暗場拍攝，都能清晰拍攝細節豐富的彩色圖像。
-
先進制冷技術
采用鑫圖先進的制冷降噪技術，可顯著減少暗電流噪聲，延長相機曝光時間，拓展了相機在長曝光領域的更多應用可能。
-
6.5微米像元尺寸
6.5μm像素完美匹配High NA 100倍、60倍和40倍顯微鏡物鏡的理想像元尺寸。它能很好地平衡高的空間采樣率和高靈敏度的需求，充分發揮光學性能優勢。
技術參數 >
- Model: Dhyana 400DC
- Sensor Type: FSI sCMOS
- Sensor Model: Gpixel GSENSE2020s
- Color/Mono: Color
- Array Diagonal : 18.8mm
- Resolution: 4MP, 2048(H)x2044(V)
- Pixel Size: 6.5μmx6.5μm
- Effective Area: 13.3mmx13.3mm
- Readout Noise: HighGain: 1.7e-
- Frame Rate: 22fps@8bit; 16fps@16bit
- Dynamic Range: 85dB
- Full-Well Capacity: Typical: 30ke-
- Shutter Type: Rolling
- Exposure Time: 21μs-10s
- Cooling Method: Forced air
- Cooling Temperature: Forced air ( Ambient at +25℃): -10℃
- Dark Current: 0.6 e-/pixel/s @ 0℃；0.35 e-/pixel/s @ -10℃
- Binning: 2x2
- ROI: Support
- Trigger Mode: Hardware & Software
- Output Trigger Signals: Exposure, Global, Readout
- Data Interface: USB3.0
- Trigger Interface: Hirose
- Data Bit Depth: 16bit
- Optical Interface: C-mount
- Power Supply: 12V/8A
- Power Consumption: 50W
- Dimensions : 120mmx119mmx121mm
- Weight: 1853g
- Software: Mosaic / LabVIEW / Matlab / Micromanager
- SDK: Support
- Operating System: Windows/Linux
- Operating Environment: Temperature 0~40°C / Humidity 10~85%
顯示更多
