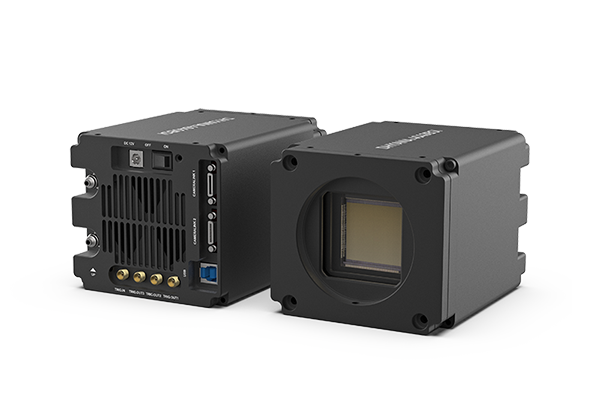

Dhyana 4040
Gpixel GSENSE4040 Large sCMOS camera
- 74%@600nm Peak QE
- 9μm x 9μm Pixel Size
- 4096 x 4096 Resolution
- 16.5fps@CL, 9.7fps@USB3.0
- CameraLink & USB3.0
詢 價
產品介紹
Tucsen Dhyana 4040 is a large sCMOS camera which used Gpixel sensor named GSENSE4040. It can be used in scientific research such as astronomy observation, spot analysis, quantum imaging and so on, which can realize high-speed and high dynamic imaging and quantitative analysis in a large field of view.
-
52毫米大靶面
52mm對角線傳感器提供了驚人的成像效率。它可以一次拍攝廣闊的視野畫面，無需拼接，提供更高的數據吞吐量和識別精度。
-
先進定量校準技術
采用鑫圖先進的定量校準技術（如DSNU／PRNU），相機成像背景質量更高，定量分析更精準，幫助科學研究獲得可信賴的結果。
-
70ke-高滿阱／高動態優勢
它提供了70ke-的滿阱容量，動態范圍高達86dB，有利于在同時測量強、弱信號，非常適合復雜光場成像。
技術參數 >
- Model: Dhyana 4040
- Sensor Type: FSI sCMOS
- Sensor Model: Gpixel GSENSE4040
- Color/Mono: Mono
- Array Diagonal : 52.1mm
- Resolution: 16MP, 4096(H) x 4096(V)
- Pixel Size: 9μm x 9μm
- Effective Area: 36.9mm x 36.9mm
- Peak QE: 74%@600nm
- Frame Rate: 16.5fps@CameraLink; 9.7fps@USB3.0
- Full-Well Capacity: Typical: 70ke-
- Dynamic Range: 86dB
- Readout Noise: 3.6e-
- Shutter Type: Rolling
- Exposure Time: 10μs~3600s
- DSNU: 0.5e-
- PRNU: 0.2%
- Cooling Method: Air & Liquid
- Max. Cooling: Air: -35℃, Liquid: -45℃
- Cooling Temperature: Air: (Ambient at +20 ): -15℃ Liquid: -25°C@20°C
- Dark Current: Air: 0.15e-/pixel/s; Liquid: 0.1e-/pixel/s
- Data Interface: USB3.0 & CameraLink
- Binning: 2x2, 4x4
- ROI: Support
- TimeStamp Accuracy: 1μs accuracy
- GPS TimeStamp : 8ns accuracy
- Trigger Mode: Hardware & Software
- Output Trigger Signals: Exposure, Global, Readout, High level, Low level
- Trigger Interface: SMA & CC1
- Data Bit Depth: 12bit & 16bit
- Optical Interface: Optional F-Mount/User-customization
- Power Supply: 12V/8A
- Power Consumption: ＜45W
- Dimensions : 105mm x 95mm x 123.5mm
- Weight: 2kg
- Software: Mosaic1.6/Samplepro/MaximDL/Labview/Matlab
- SDK: C/C++/C#
- Operating System: Windows/Linux
- Operating Environment: Working: Temperature -25 ~ 45℃/Humidity 0~95%
Storage: Temperature-35 ~ 60℃/Humidity 0~95%
顯示更多
應用方向 >
Download >
-
Dhyana 4040 Brochure
-
Dhyana 4040 Dimension
-
Software-Mosaic V1.6.8
-
Plugin-Labview ( with user guide )
-
Plugin-Matlab ( with user guide )
-
Plugin-MetaXpress ( with user guide )
-
Plugin-Micromanager ( with user guide )
-
Plugin-Maxlm DL
-
Driver-TUCam Camera Driver V1.4.0.8
