Excellent partner of scientific photography, Tucsen eleased an upgraded version of the CCD camera TCH-5.0

2013-01-23

Product Release

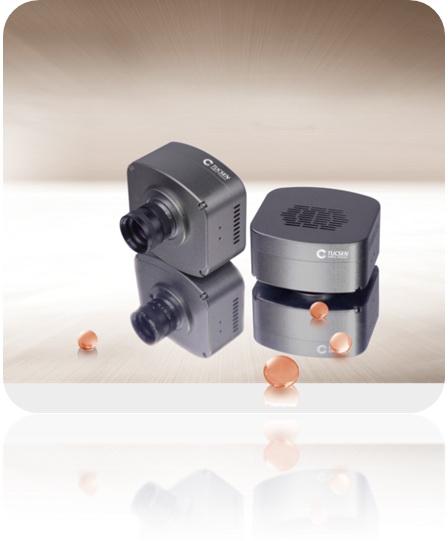

At the beginning of Dec 2012, Tucsen professional CCD camera TCH-5.0 upgrade version was officially released, at the same time TCH-5.0ICE refrigeration type was also released. TCH-5.0 is popular with the upgrade version of professional camera TCC-5.0, its carrying two thirds inches of the Sony high-quality large surface array CCD image sensor ICX282AQ, effective pixels is 507 million. The professional science camera has high resolution, high resolution and large format, brings you greater scope and more clear details. New TCH-5.0 camera has all the advantages of Tucsen H series camera, including brisk appearance, upgrade the color performance and faster USB data transmission speed.

圖森相機(jī)

●Large surface CCD 5.07 million effective pixels

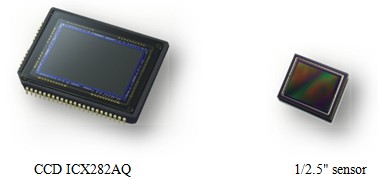

TCH-5.0 equipped with a large SONY CCD image sensor, the diagonal distance of the chip 2/3 inch, the field of vision is more 80% than 1/2 inch chip. 5.07MP brings in high resolution, eyeshot and image details at the same time. It is a rare large plane array high quality professional CCD camera.

●CCD brings quality color performance support 12 bit A/D

TCH-5.0 CCD image sensor has high fidelity color reduction, in cooperation with the improved decoding algorithm, color and clarity get into full play, and with high quality A/D 12bit converter, provide you a more realistic dynamic range of picture.

●Rich software available for selection

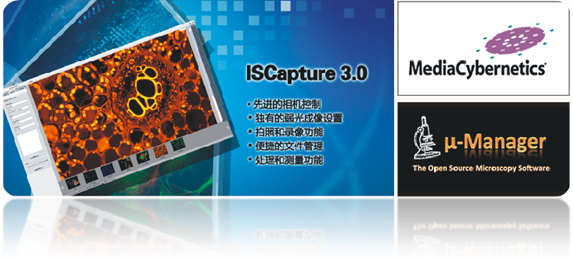

TCH-5.0 comes with the latest version of ISCapture 3.0, its simple operation interface and image processing functions will help you easily complete the work. Not only that, TCH-5.0 is domestic only a support for the United States MediaCybernetics's Pro series of software products, and global famous open source software image Micromanager and ImageJ camera. You have greater software application development space for scientific research and industrial testing.

Mode	TCH-5.0
Sensor	Sony ICX282AQ
Sensor size	2/3"
Pixel size	3.4μm×3.4μm
MAX resolution	2580×1944
Fhotoroom Dramatic	RGB
Physical interface	C-MOUNT
Frame Rate	3fps (2580 × 1944)
Frame Rate	10fps (1280 × 932)
A/D	12 bit
Sensitivity	365mv
Dynamic range	62dB
SNR	70dB
exposure time	0.1ms-20min.
exposure control	manul/auto
white balance	manul/auto
multi-camera support	support
Mac/Linux/Windows	support
scan mode	progressive
shutter	electronic shutter
data interface	USB2.0/480Mb/s
